TT-1 | Siemens NX – Tips and Tricks
Find the assembly in windows
It is quite simple!
In just 2 minutes you’ll know this trick
Since all files in NX have the same file extension, it seems impossible at first to distinguish between assemblies and components in Windows. But it is quite simple!
Lesson 01 from 10
All lessons - Siemens NX Tutorial - Tips and Tricks

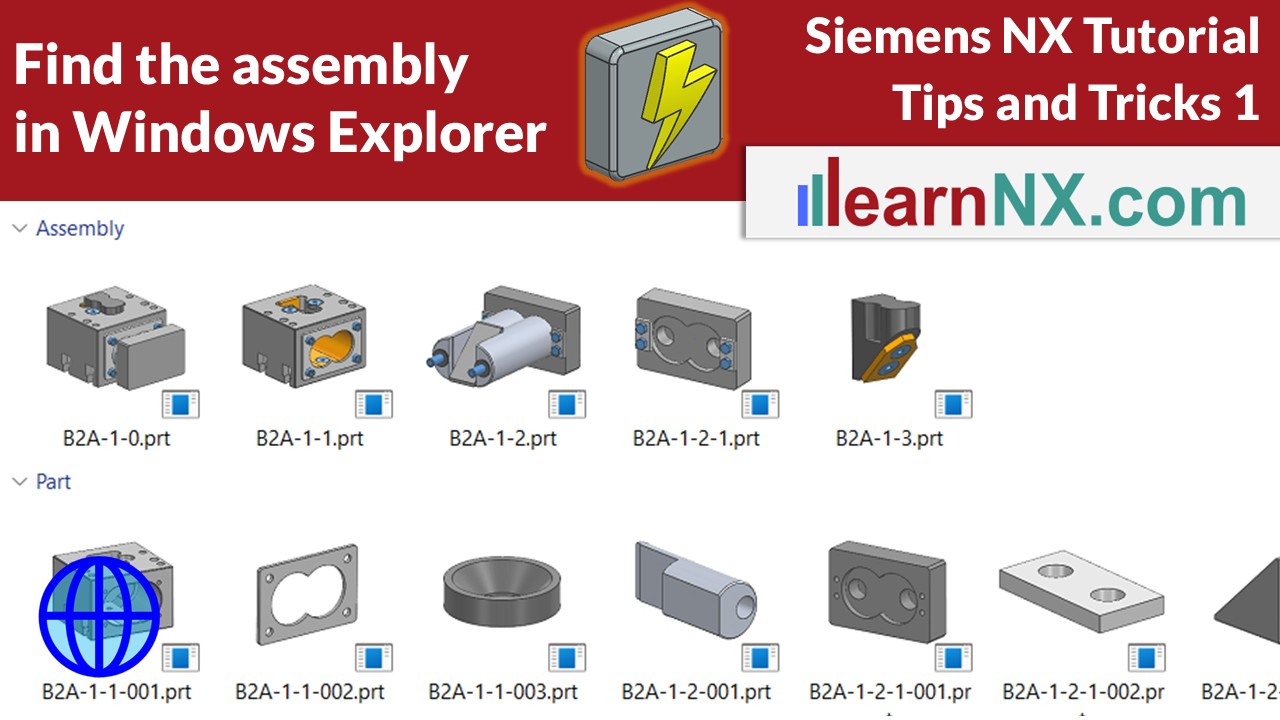

TT-1 | Siemens NX Tutorial - Tips and Tricks
Find the assembly in windows
Since all files in NX have the same file extension, it seems impossible at first to distinguish between assemblies and components in Windows. But it is quite simple!
NX TT-1
no download

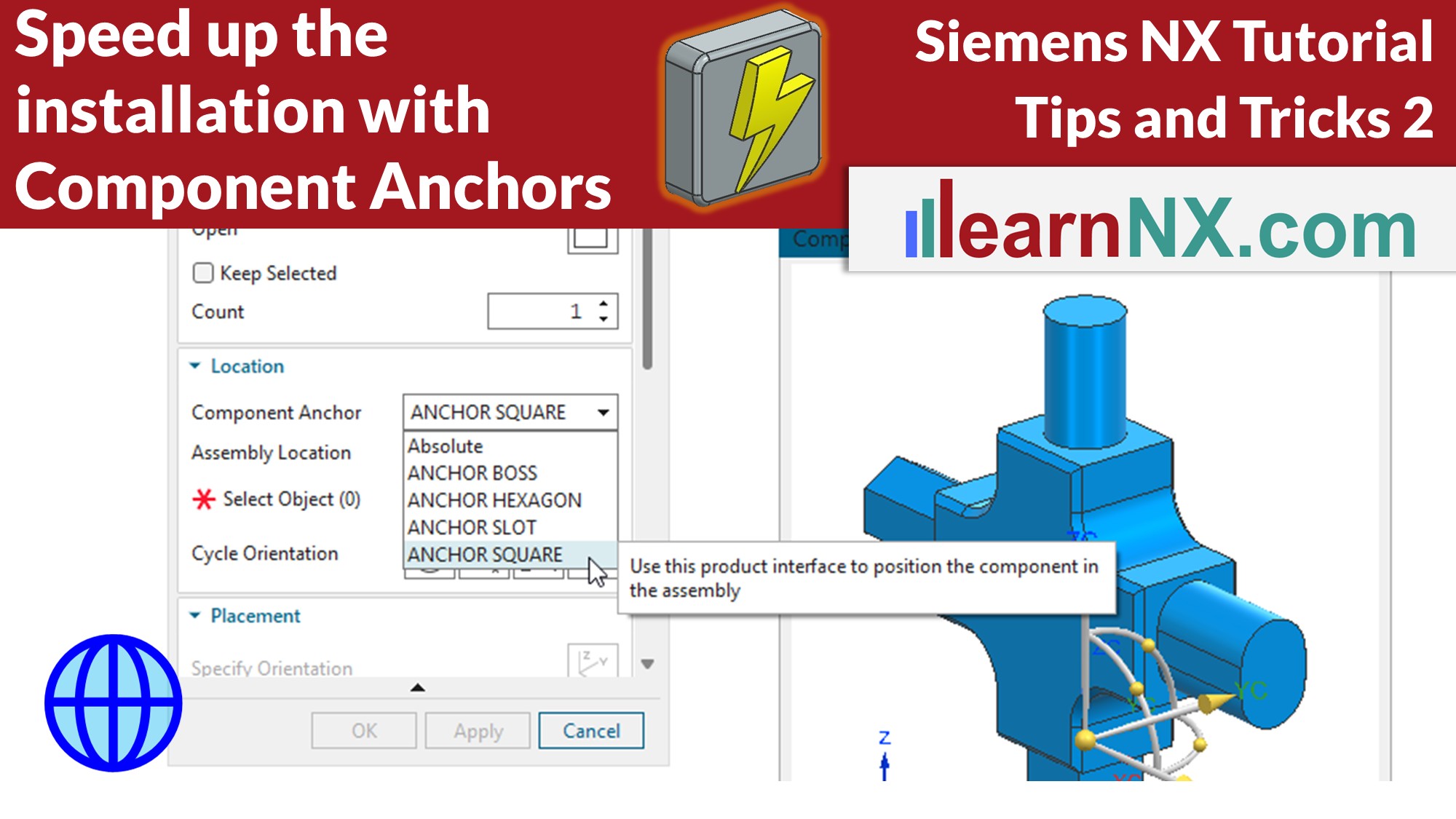

TT-2 | Siemens NX Tutorial - Tips and Tricks
Work with Component Anchors!
With coordinate systems defined as anchors, you can significantly speed up the installation of components.
NX TT-2
no download

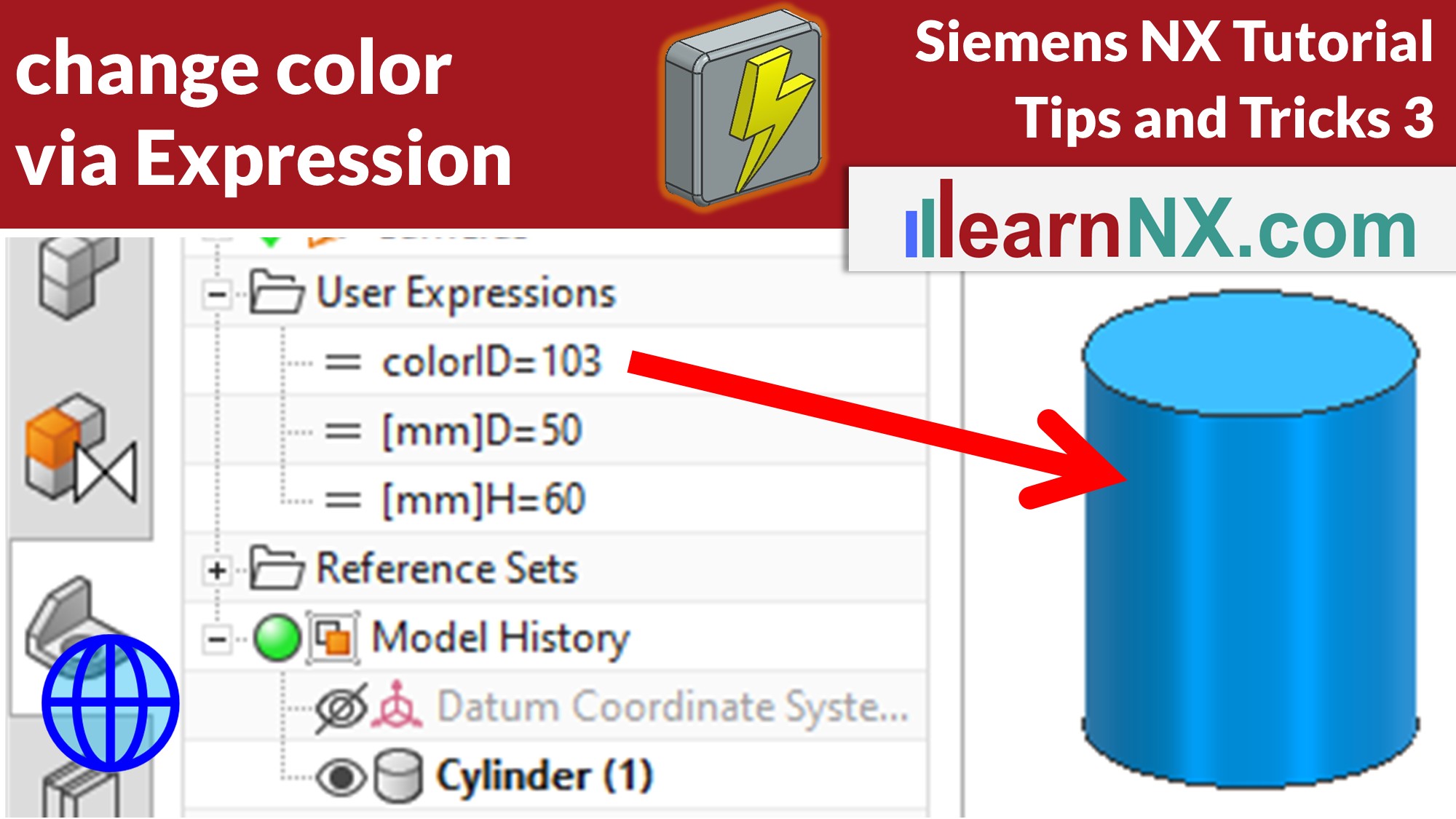

TT-3 | Siemens NX Tutorial - Tips and Tricks
Change colour via expression
Products with identification colours have the same geometry, but different colours. There are many possible solutions for this, but the best would be, to be able, to change the colour via an expression.
NX TT-3
no download

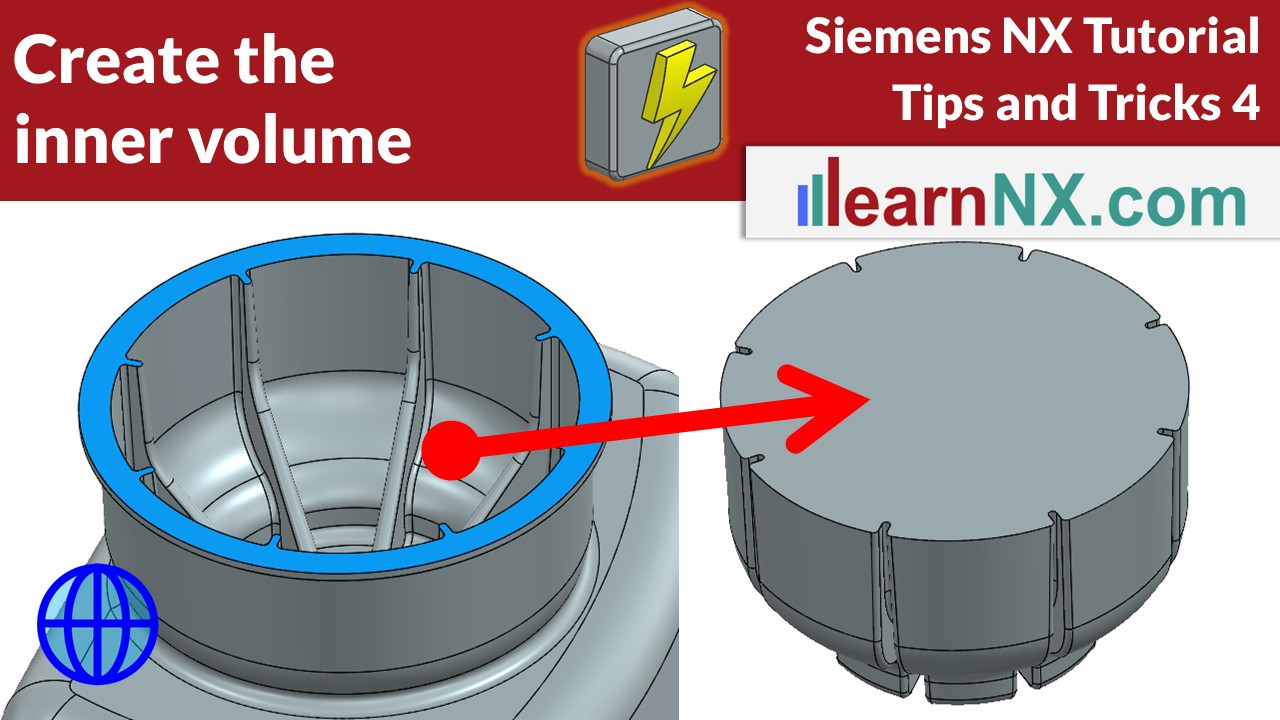

TT-4 | Siemens NX Tutorial - Tips and Tricks
Create the inner volume
Do you have complex parts and need the inner volume? It's easy with the right selection. Start the Delete command, and combine the option Region Faces with All But Selected.
NX TT-4
The part for the lesson

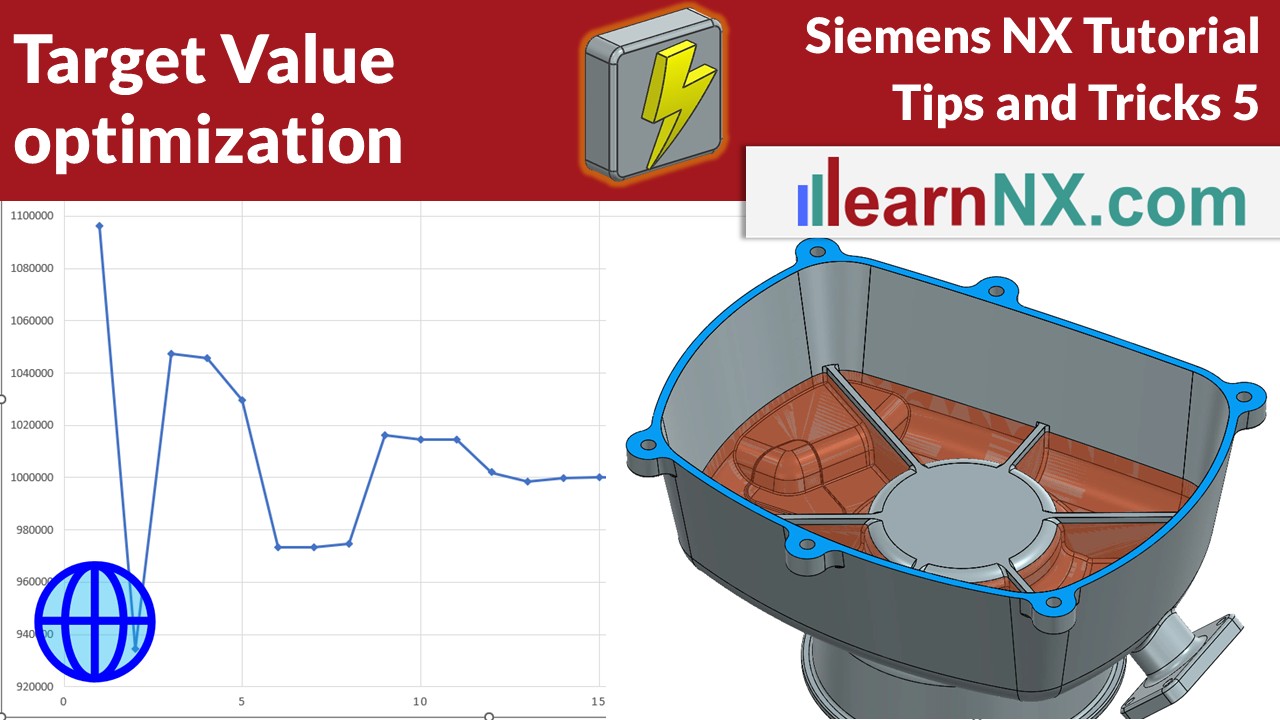

TT-5 | Siemens NX Tutorial - Tips and Tricks
Target value optimization
The Optimization command can be used to find the target value using automated tests.
Normally, the variables change the result in a calculable way. But if the constraints are very complex, the desired result must be determined through testing. A parameter is adjusted until a measurement corresponds to the target value. The number of tests, calculation time and tolerance can be set.
NX TT-5
The part for the lesson

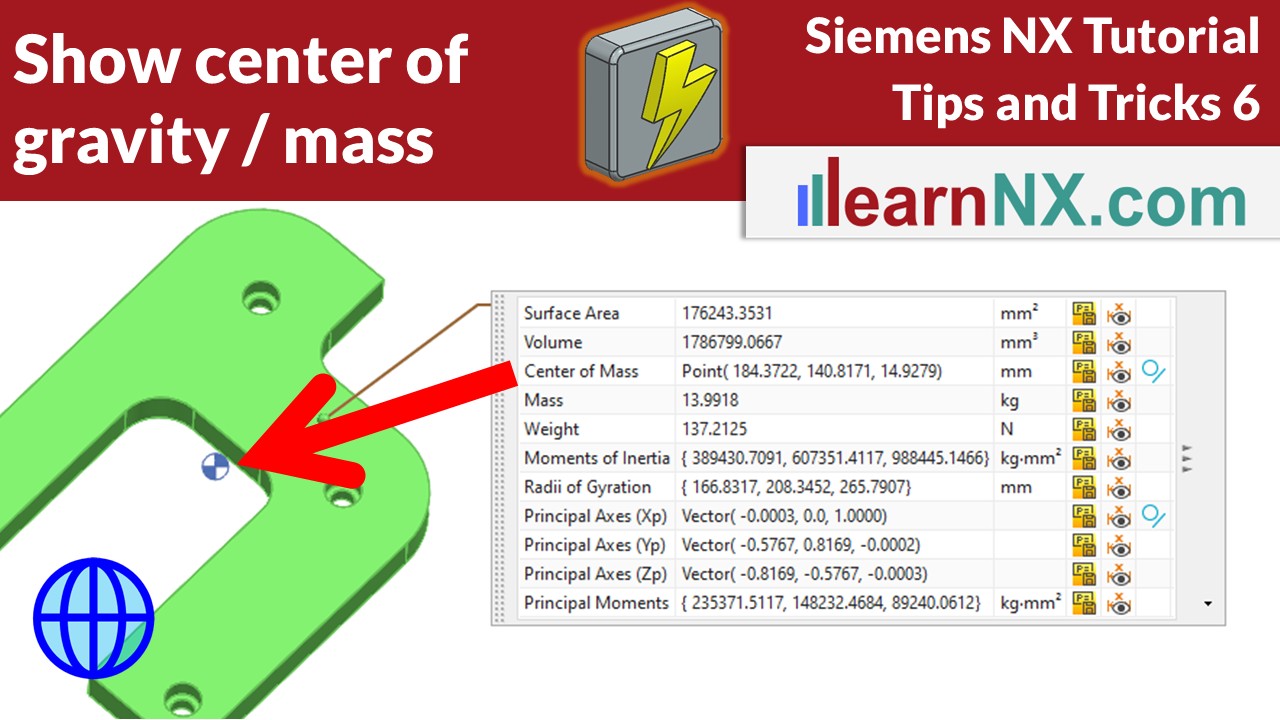

TT-6 | Siemens NX Tutorial - Tips and Tricks
Show center of gravity in model, assembly and drawing
The center of gravity (center of mass) for a model or assembly can be created associatively using the Measure command. To show the center of gravity in a drawing, it must be in the reference set model, and with the help of layers it is shown in selected views.
NX TT-6
no download

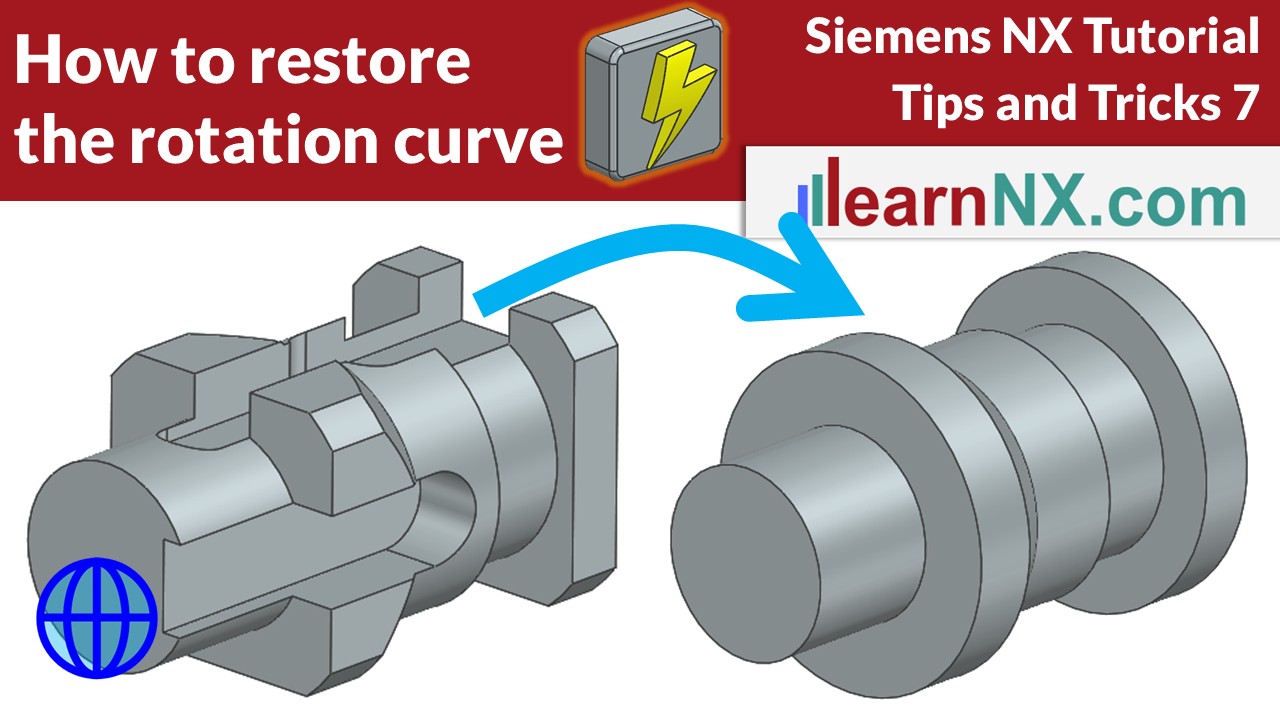

TT-7 | Siemens NX Tutorial - Tips and Tricks
How to restore the rotation curve
The Revolve Outline command can be used to restore the rotation curve with just a few clicks. And this works with a parametric model as well as with a non-parametric model (step). And so complex parts become simple turned parts again.
NX TT-7
The part for the lesson

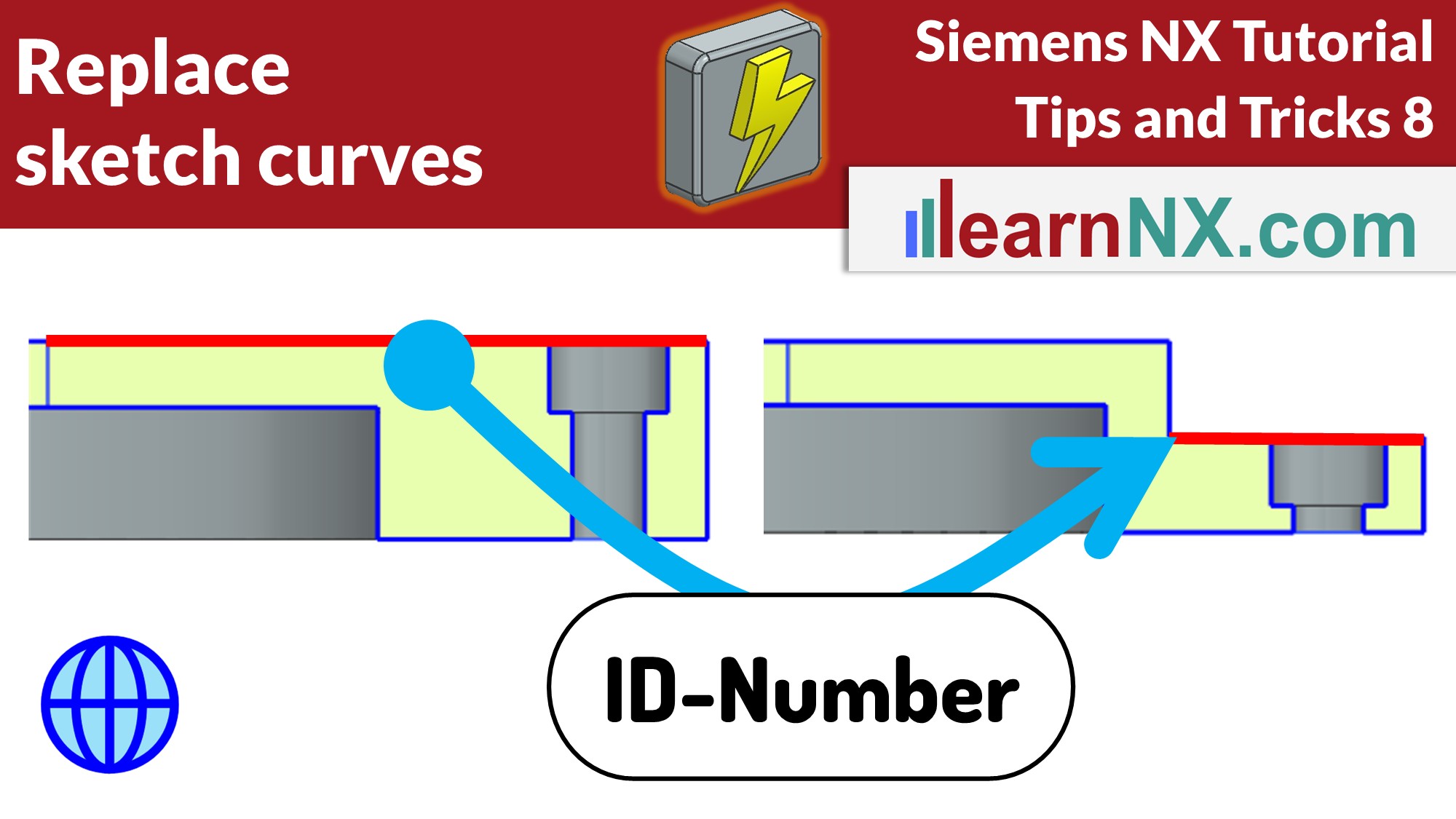

TT-8 | Siemens NX Tutorial - Tips and Tricks
Replace sketch curves
References can be lost when changes are made to sketches. The Replacement Assistant allows you to replace (mapping) the sketch curve without error.
NX TT-8
no download
TT-9 | Siemens NX Tutorial - Tips and Tricks
Find and create shortcuts
Create and save new shortcuts. Make a list of all the existing shortcuts in NX. Also included is a list of useful shortcuts.
NX TT-9
Usefull shortcuts

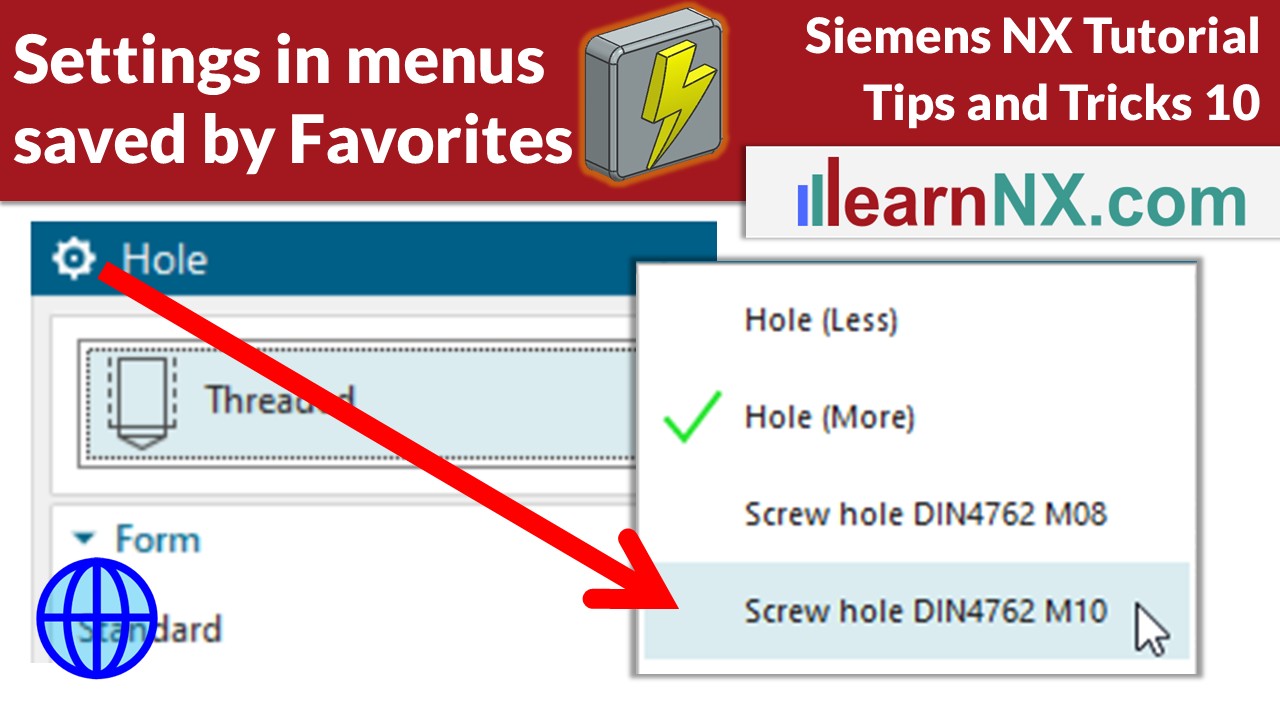

TT-10 | Siemens NX Tutorial - Tips and Tricks
Save settings in menus with Favorites
Favorites can be used to save settings in the menus. The saved settings can be called up later in the command. A user-defined icon can also be linked to the favorites and called up directly via the user interface.
NX TT-10
no download
